40KW OCPP CCS Chademo RFID 132A Wall Box EV Charger

Brand Name : ARK

Model Number : UF40K500C-W

Certification : CE

Place of Origin : China

MOQ : 1 Unit

Price : 8500$

Payment Terms : T/T

Delivery Time : 11-14 weeks

Packaging Details : Wooden case package 850 x 650 x 1700 mm Power modules outside the charger cabinet to be shipped to avoid the damage during shipping. 32 units per 40' Container

Input Voltage Range : 400Vac +/-10%, 3-phase

Input Frequency Range : 50Hz/60Hz

Output Voltage Range : 150 - 750V DC, constant output @ above 300V

Output Current Range : 0 - 66A / 0 - 132A

Rated Output Power : CCS: 20kW, CHAdeMO: 20kW / CCS: 40kW, CHAdeMO: 40kW

Warranty : 12 Months

Working Humidity : 5%-95%

Working Temperature : -20° C to +55° C

Charging Standards : CCS & CHAdeMO

Efficiency : >94%

Contact Now

Product Introduction

New Design 40kw EV Commercial DC Charger With Intelligent Network OCPP With CCS/CHADEMO Outlets And RFID


ARK 380V 400V 480V OUTPUT 0-550V 30kW CHAdeMO wall mounted EV DC Fast charger for i3 Fast Charging is the most advanced Electric Vehicle Charging Station currently available. Its modular design construction allows for free configuration of power modules and electrical components, application of a Ethernet/WiFi/3g/4g communication or RFID card reader.
 This series chargers can be operated stably in various application scenarios and envrionments, even if low or high temperatures.

Product Parameters

Specification	Model	EF040CJ
Structure	Application scenes	Parking lot/Public charging station
	Housing material	Metal case
	Dimension	600 x 700 x 363mm, 1500 x 700 x 363mm (pedestal mount)
	Installation method	Wall-mount, Pedestal-mount(optional)
	Cable routing	Bottom inlet, bottom outlet wiring
	Weight	95kgs, 120kgs (pedestal mount)
	Cable length	4m
	Cable outlets	2, single charging
Electrical specifications	Input voltage	400Vac +/-10%, 3-phase
	Input frequency	50Hz/60Hz
	Rated power	40kW
	Output voltage	150 – 750V DC, constant output @ above 300V
	Output current	0 - 66A / 0 - 132A
	Efficiency	≥ 94%
	Power factor	≥ 0.99
Function design	User interface	RFID, 7” touch screen, Emergency button
	Charging standards	IEC 61851, CHAdeMO
	Communication	CAN, PLC, OCPP 1.6 JSON
Environment condition	Application place	Indoor/Outdoor
	Working temperature	-20 ° C ~ +55 ° C
	Working humidity	5% ~ 95% without condensation
	Altitude	<2000m
	Protection grade	IP54
	Cooling	Forced-air
	MTBF	100,000 hours
	Safety standards	IEC 61851-1, IEC 61851-22, IEC 61851-23, IEC 61851-24, DIN 70121, IEC 15118-3
	Security design	Over/under voltage protection, overload protection, current leakage protection, grounding protection, over temp protection, lightening surge protection

Product Details Show

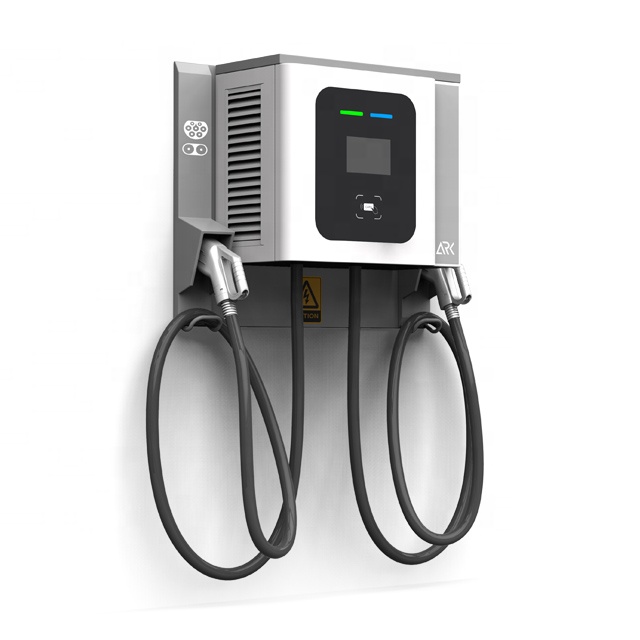

40KW OCPP CCS Chademo RFID 132A Wall Box EV Charger
